Features for the LMR14203

• Input Voltage Range of 4.5V to 42V
• Output Voltage Range of 0.765V to 34V
• Output Current up to 0.3A
• 1.25 MHz Switching Frequency
• Low Shutdown Iq, 16 µA Typical
• Short Circuit Protected
• Internally Compensated
• Soft-Start Function

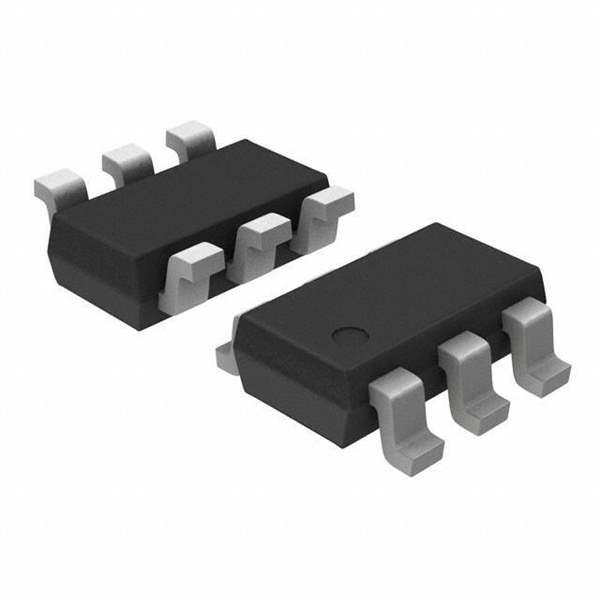

• Thin SOT-23-6 Package (2.97 x 1.65 x 1mm)
• Fully Enabled for WEBENCH® Power Designer

Performance Benefits

• Tight Accuracy for Powering Digital ICs
• Extremely Easy to Use
• Tiny Overall Solution Reduces System Cost

All trademarks are the property of their respective owners.

Description for the LMR14203

The LMR14203 is a PWM DC/DC buck (step-down) regulator. With a wide input range from 4.5V-42V, it is suitable for a wide range of applications such as power conditioning from unregulated sources. They feature a low RDSON (0.9Ω typical) internal switch for maximum efficiency (85% typical). Operating frequency is fixed at 1.25 MHz allowing the use of small external components while still being able to have low output voltage ripple. Soft-start can be implemented using the shutdown pin with an external RC circuit allowing the user to tailor the soft-start time to a specific application.

The LMR14203 is optimized for up to 300 mA load current.

Additional features include: thermal shutdown, VIN under-voltage lockout, and gate drive under-voltage lockout. The LMR14203 is available in a low profile SOT-6L package.
