    TPS SMD Chip TI Capacitor TPS53915RVET SMD Mount 200kHz - 1MHz

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : TPS53915RVET
    Certification : /
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 9999999+PCS
    Delivery Time : 2-7 work days
    • Product Details
    • Company Profile

    TPS SMD Chip TI Capacitor TPS53915RVET SMD Mount 200kHz - 1MHz

    SMD Chip Capacitor Texas Instruments/TI TPS53915RVET

    ECAD ModulePCB Symbol,Footprint & 3D Model
    Supply and Demand StatusLimited
    Fake Threat In the Open Market63 pct.
    PopularityLow
    SeriesTPS series
    MSL Level2 (1 Year)
    Manufacturer Pack Quantity1

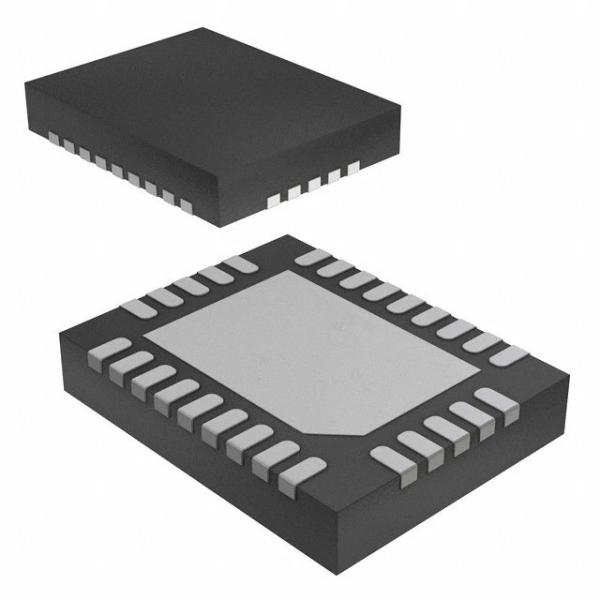

    Supplier Device Package28-VQFN-CLIP (4.5x3.5)
    Manufacturer Package28-VFQFN Exposed Pad
    Mounting StyleSMD
    Temperature Range - Operating-40°C ~ 85°C
    Synchronous RectifierYes
    Switching Frequency200kHz ~ 1MHz
    Output Current12A
    Maximum Output Voltage5.5V
    Min/Fixed Output Voltage0.6V
    Voltage - Input (Maximum)18V
    Voltage - Input (Minimum)1.5V
    Output TypeAdjustable
    TopologyBuck
    FunctionStep-Down
    PackagingReel
    ManufacturerTexas Instruments
    CategoriesIntegrated Circuits

    Features for the TPS53915

    • Integrated 13.8- and 5.9-mΩ MOSFETs Support
      12-A Continuous Output Current
    • Adjustments Available Through PMBus™
      • Voltage Margin and Adjustment
      • Soft-Start Time
      • Power-On Delay
      • VDD UVLO Level
      • Fault Reporting
      • Switching Frequency
      • Supports All Ceramic Output Capacitors
      • Reference Voltage 600 mV ±0.5% Tolerance
      • Output Voltage Range: 0.6 V to 5.5 V
      • D-CAP3™ Control Mode With Fast Load-Step
        Response
      • Auto-Skipping Eco-Mode™ for High Light-
        Load Efficiency
      • FCCM for Tight Output Ripple and Voltage
        Requirements
      • Eight Selectable Frequency Settings from
        200 kHz to 1 MHz
      • 3.5 mm × 4.5 mm, 28-Pin, QFN Package

    Description for the TPS53915

    The TPS53915 is a small-sized, synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device offers ease-of-use and low external-component count for space-conscious power systems.

    This device features high-performance integrated MOSFETs, accurate 0.5% 0.6-V reference, and an integrated boost switch. Competitive features include very-low external-component count, fast load-transient response, auto-skip mode operation, internal soft-start control, and no requirement for compensation. The device also features programmability and fault report via PMBus™ to simplify the power supply design.

    A forced continuous conduction mode helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS53915 is available in a 28-pin QFN package and is specified from –40°C to 85°C ambient temperature.
